This integration guide is compatible with the following M-TEC products:
M-TEC Energy Butler
1. Wiring

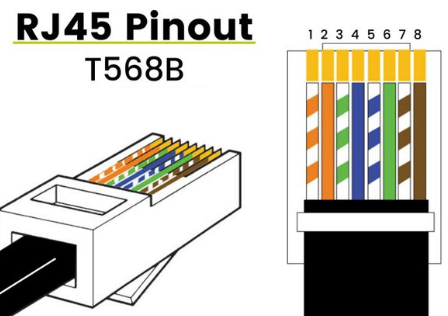

On one end of a ethernet cable crimp a RJ45 plug using the T568B termination standart.

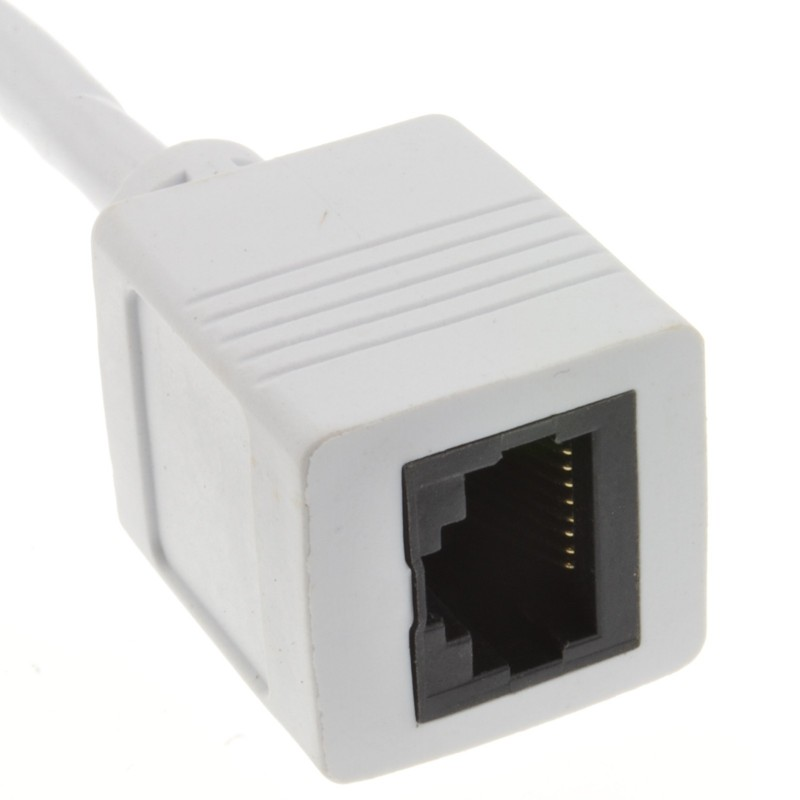

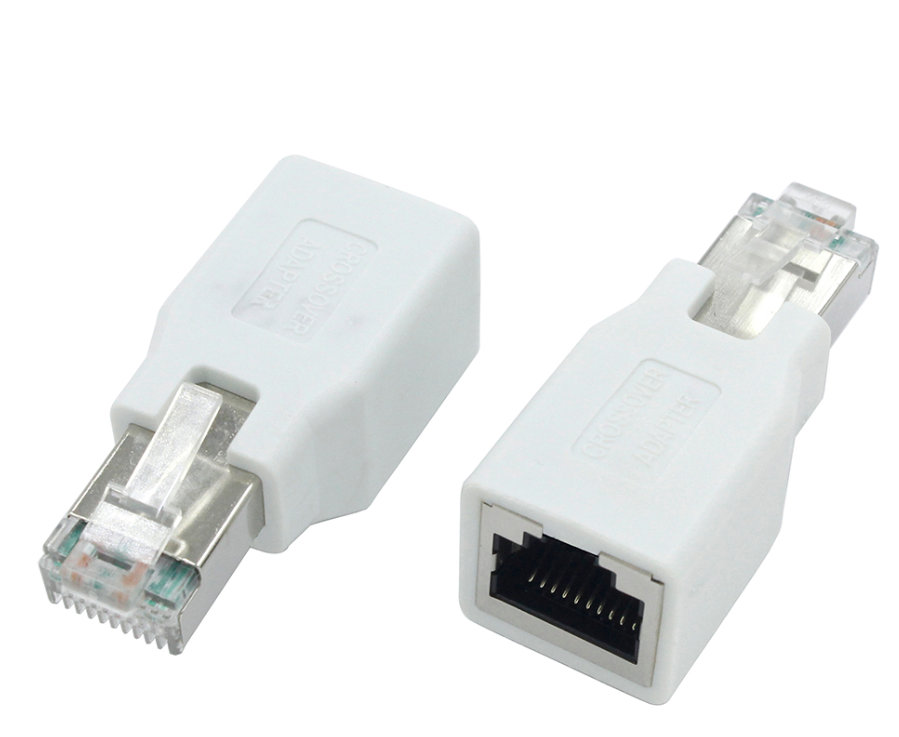

Connect the crimped RJ45 plug to the LIFEPOWR USB-RS485-TYPE2 (white dongle).
On the other end of the ethernet cable, connect the blue & white wire to M-TEC connector pin 13 and the blue wire to pin 14.

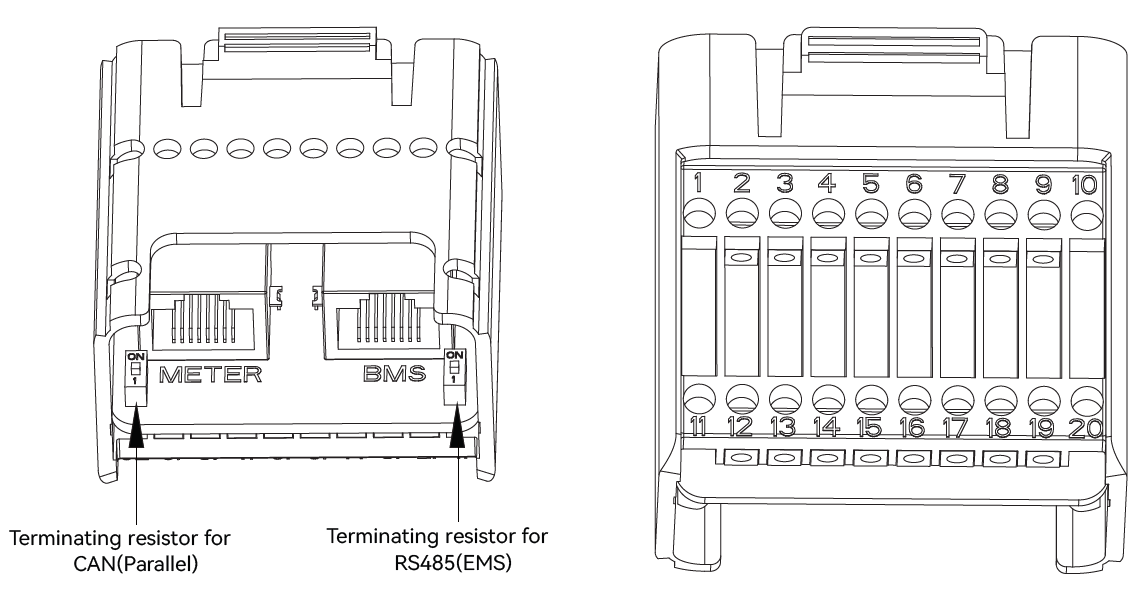

M-TEC Connector Pinout:
M-TEC Pin | Description | UTP Wire |
|---|---|---|
13 | 485 B1 | Blue & White |
14 | 485 A1 | Blue |
Connect the dongle USB plug into any USB port on the FlexiObox.
2. Enable modbus
Modbus is enabled by default on the Energy Butler models. No configuration is required.
