[LMG] Standard USB RS485 Modbus dongle
Description
Standard USB dongle for connecting FlexiO compatible inverters using Modbus RTU.
This connection allows FlexiO to control the inverter via the RS485 port.

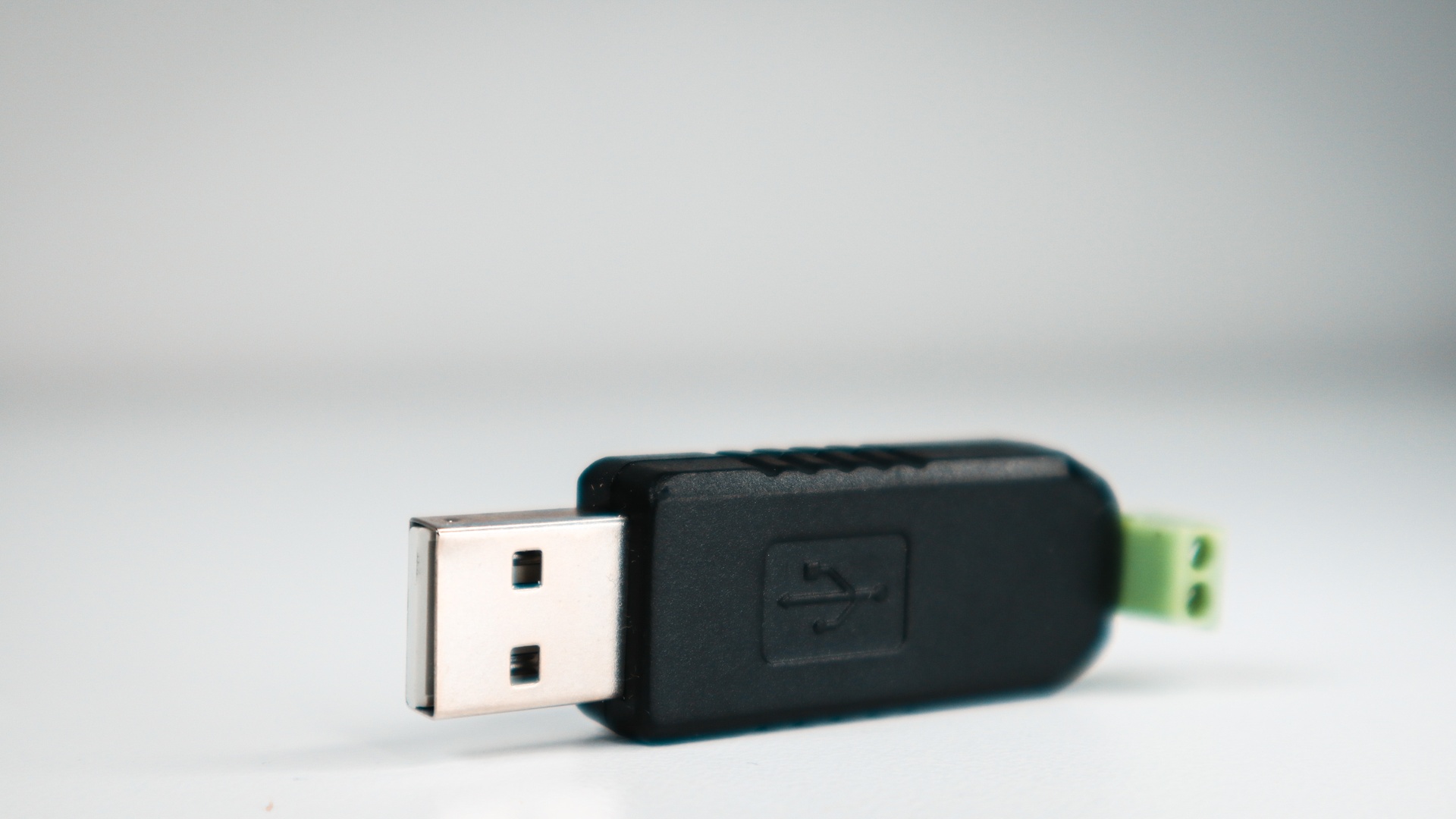

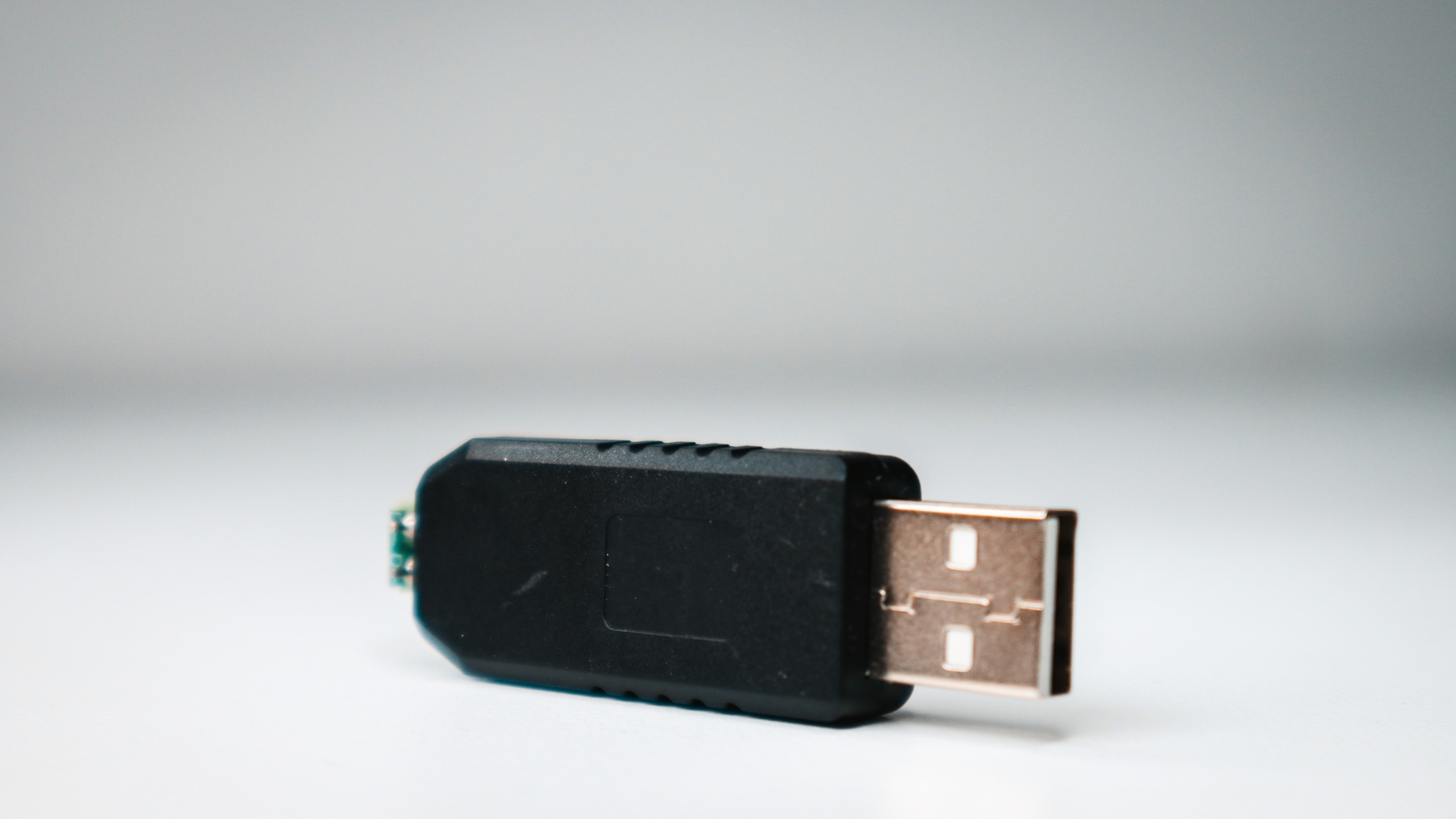

Product images
Related products
LIFEPOWR has following vendor specific Modbus RTU compatible cables available:
Related: where to order this product.
Installation instructions
Connect the serial (2-wire) data cable from the drive using the screws.
With the screws facing up and to the left as shown, the connection diagram is as follows:
RS485 A
upper terminalRS485 B
lower terminal
Tip: Use heat-shrinkable tubing to finish the connection with screws.
Example with shrink tubing
Connect the USB end to the FlexiObox.
You can choose which 4 USB ports to use (2x USB 2.0 black and 2x USB 3.0 blue).
More technical details on inverters and charging station configurations can be found here.
Technical details
Data | |
|---|---|
Product number: | LMG |
Weight: | 20 gram |
Cable length: | Nvt. |
Connector 1: | 2 screws |
Connector 2: | USB-A |
Communication protocol: | Modbus RTU |
GTIN-13 ref: | 5430004172062 |
Documentation | |
|---|---|
Product datasheet: | |
EU safety leaflet: | |
CE declaration: | |
Certification EMC/ROHS/CEBEC: |
