(discontinued product) [LMS] Solis Modbus to USB (2,5m)
IMPORTANT: this product has been deprecated as from January, 30th 2025.
Replacement alternative:
Latest version of Solis S5 has an onboarded RJ45 connector for Modbus RTU.
Use LMGS (Black Dongle) combined with a LSF2 (S/FTP network cable).
For Solis S6 models please read this section as RJ45 pin connection may differ per model.
(May 2025) Solis DataLogger alert:
We are experiencing issues with latest firmware for Solis DataLogger S2-WL-ST.
LIFEPOWR and Solis are looking for a solution.
Description
Specific Solis Modbus cable to be used for Modbus RTU connection for controlling FlexiO compatible Solis inverters.
This cable connection allows FlexiO to control the inverter via the FlexiObox.

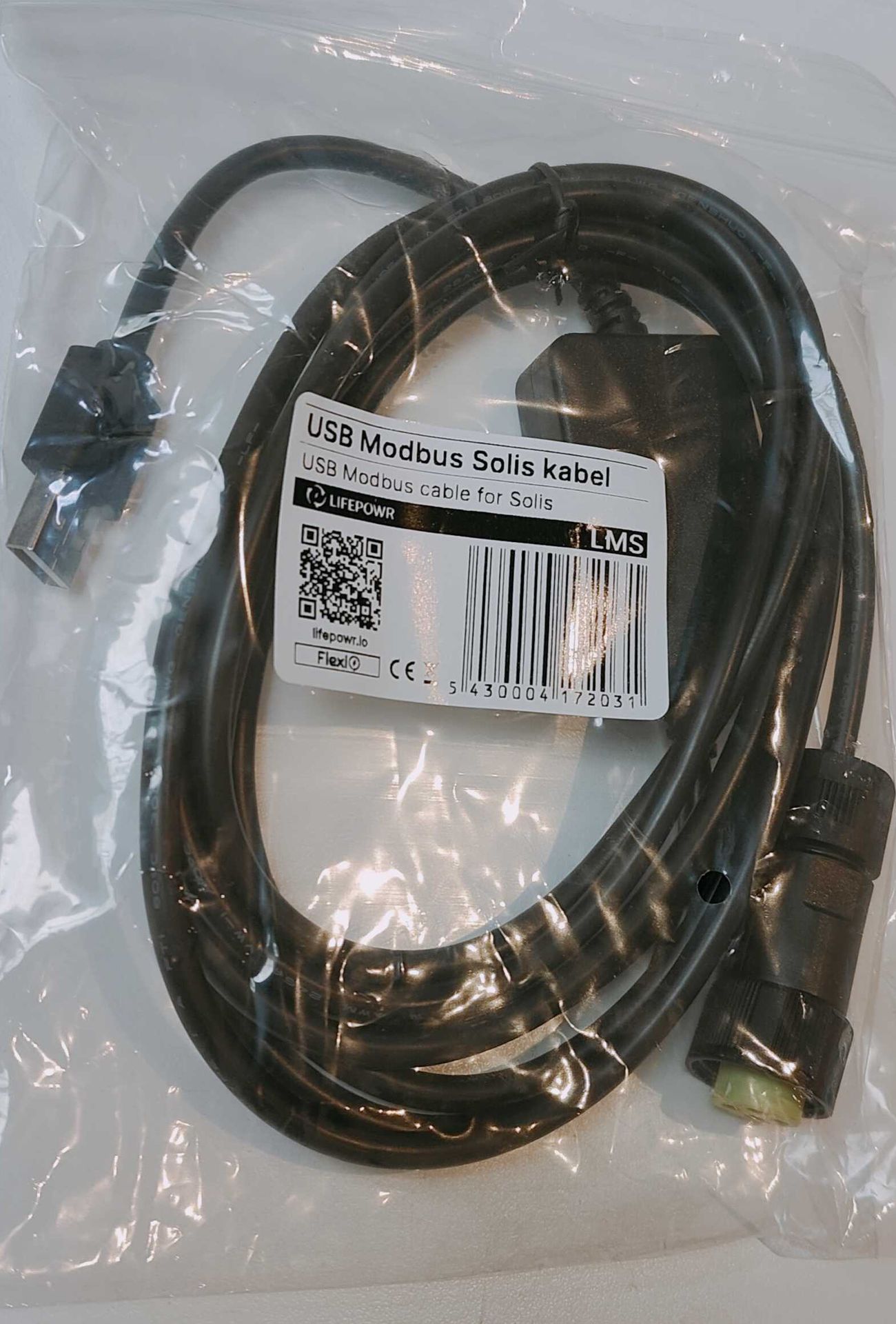

Product images
Related products
-
Installation instructions

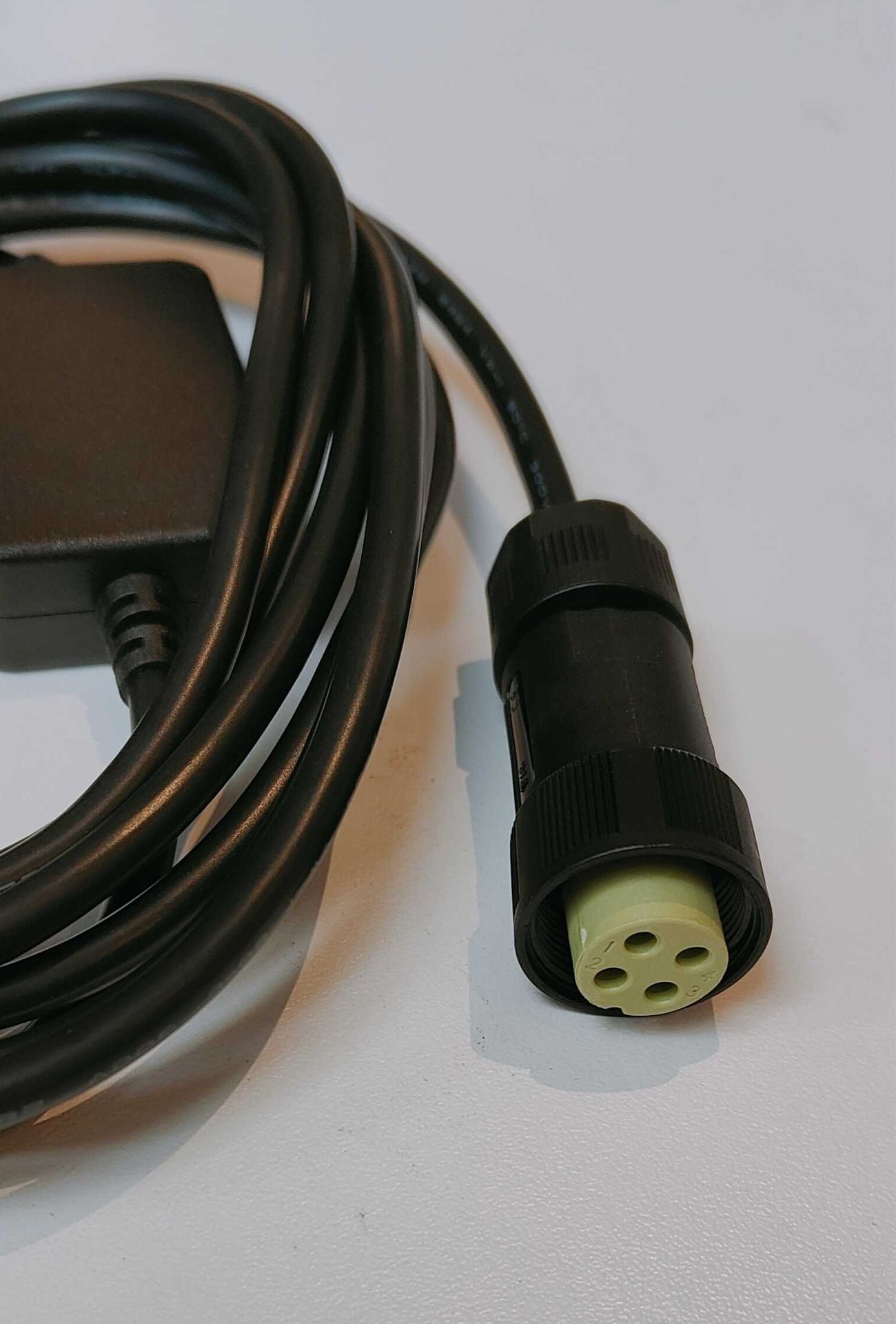

Connect the green GX16-4 connector to the Solis inverter.

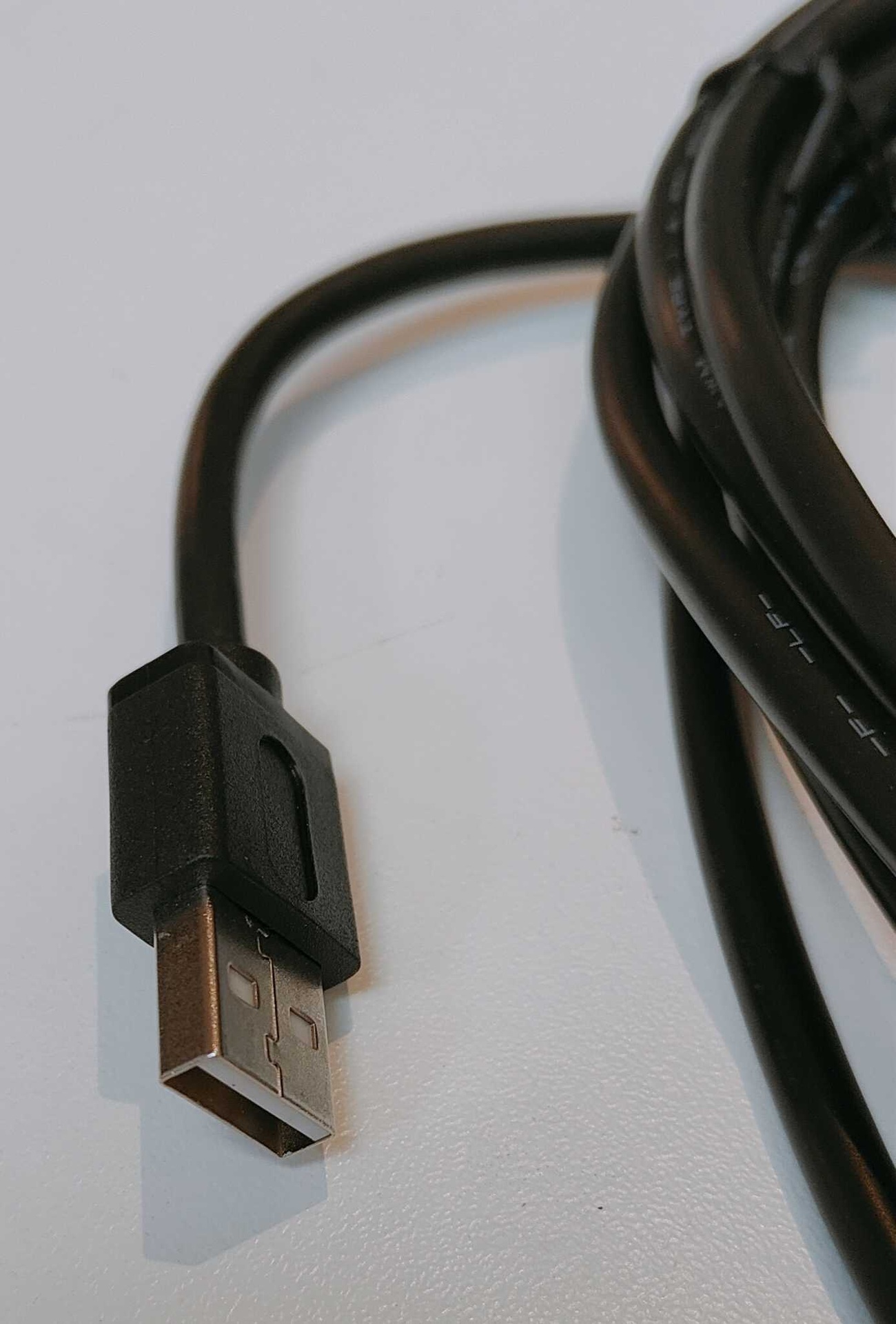

Connect the other end of the cable (USB) to the FlexiObox.
You can choose which 4 USB ports to use (2x USB 2.0 black and 2x USB 3.0 blue).
More technical details on inverters and charging station configurations can be found here.
Technical details
Data | |
|---|---|
Product number: | LMS |
Weight: | 120 gram |
Cable length: | 2,5 meter |
Connector 1: | GX16-4 (female, green) |
Connector 2: | USB-A |
GTIN-13 ref: | 5430004172031 |
Documentation | |
|---|---|
Product datasheet: | |
EU safety leaflet: | |
CE declaration: | |
Certification EMC/ROHS/CEBEC: |
Q&A
Insert the GX16-4-specific Solis connector into the receptacle provided on the inverter and tighten securely. Sometimes an additional push/click is required to have a good and working connection.
