[LMGW] GoodWe Modbus to USB (2,5m)
Description
Specific GoodWe Modbus cable to be used for Modbus RTU connection to control FlexiO compatible GoodWe inverters.
This connection allows FlexiO to control the inverter.

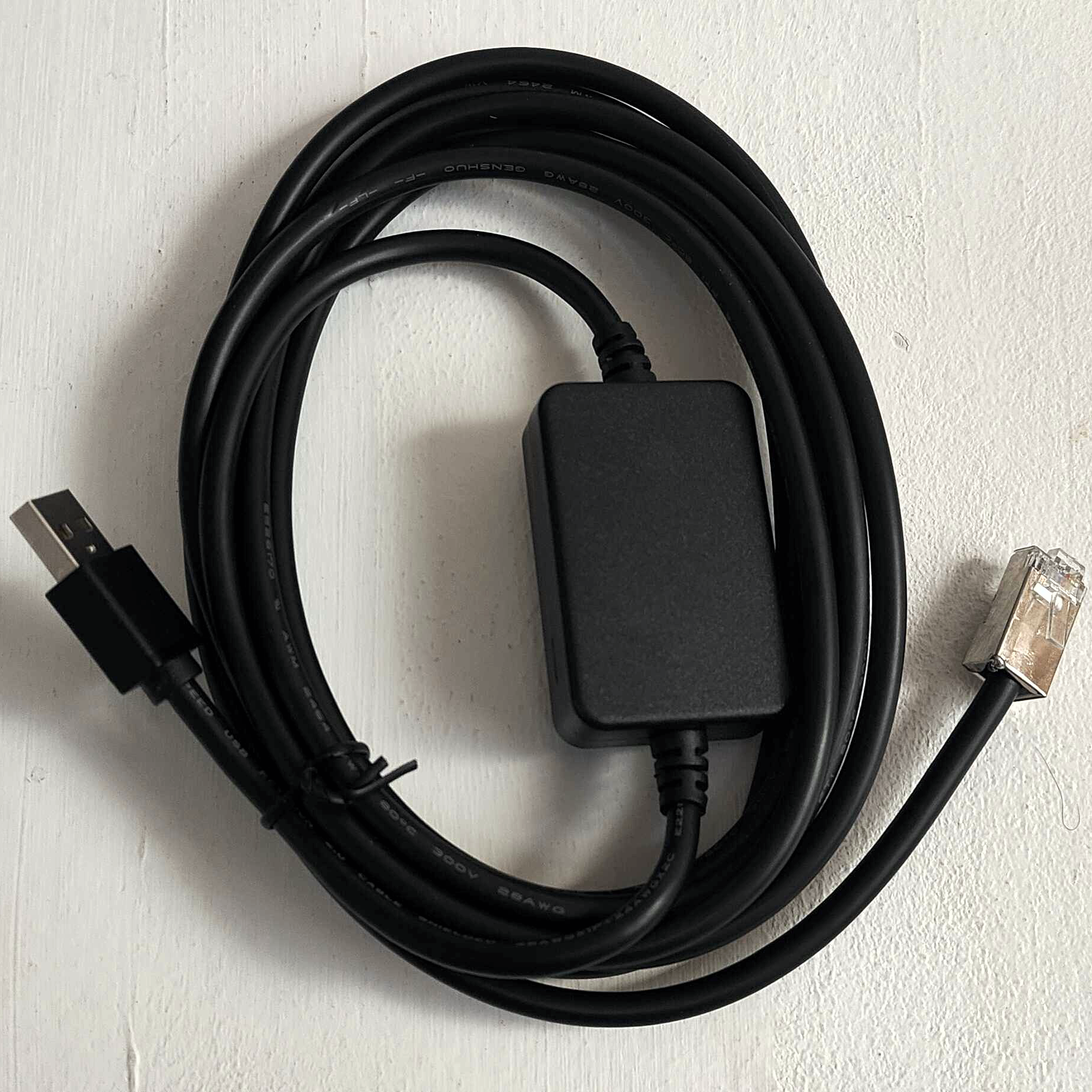

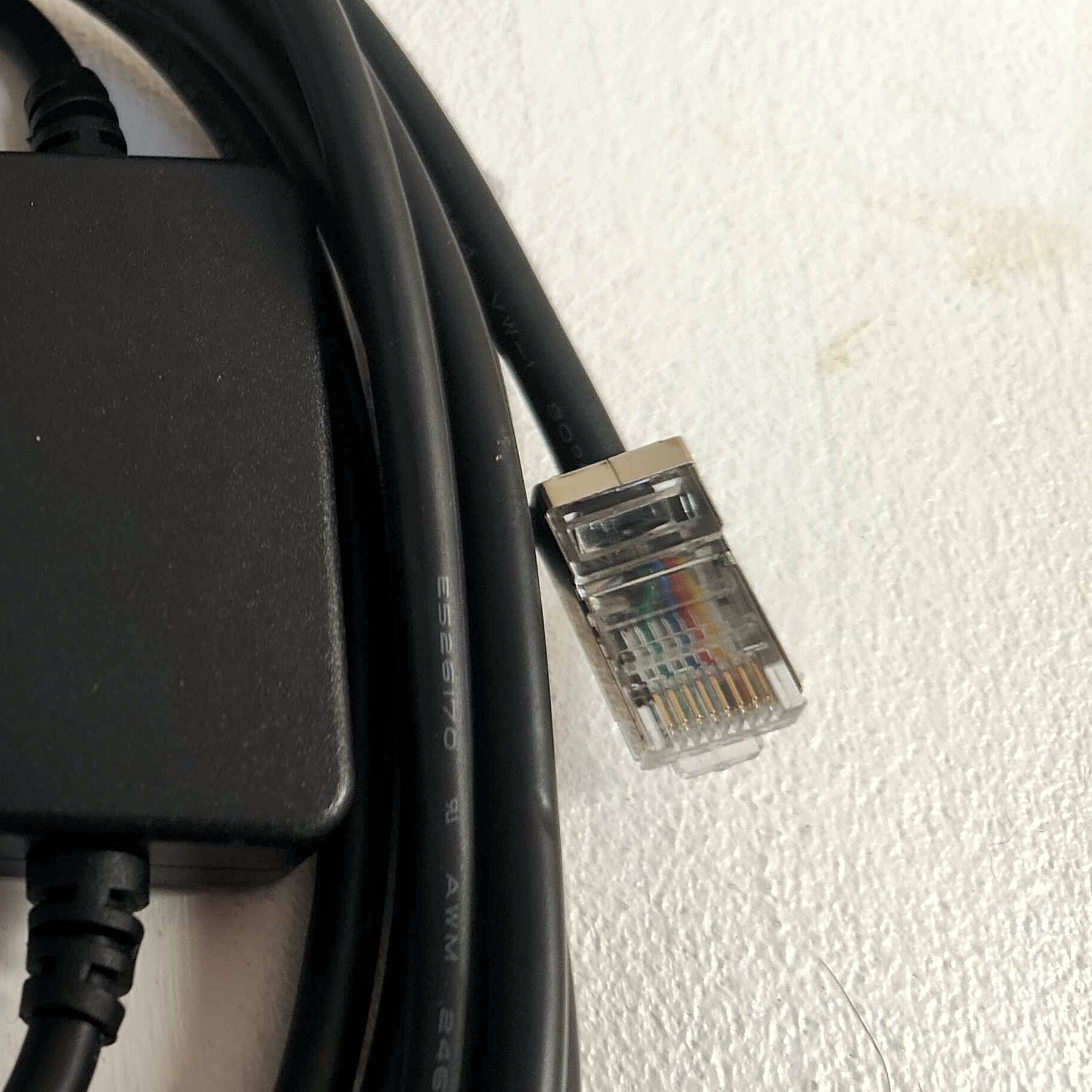

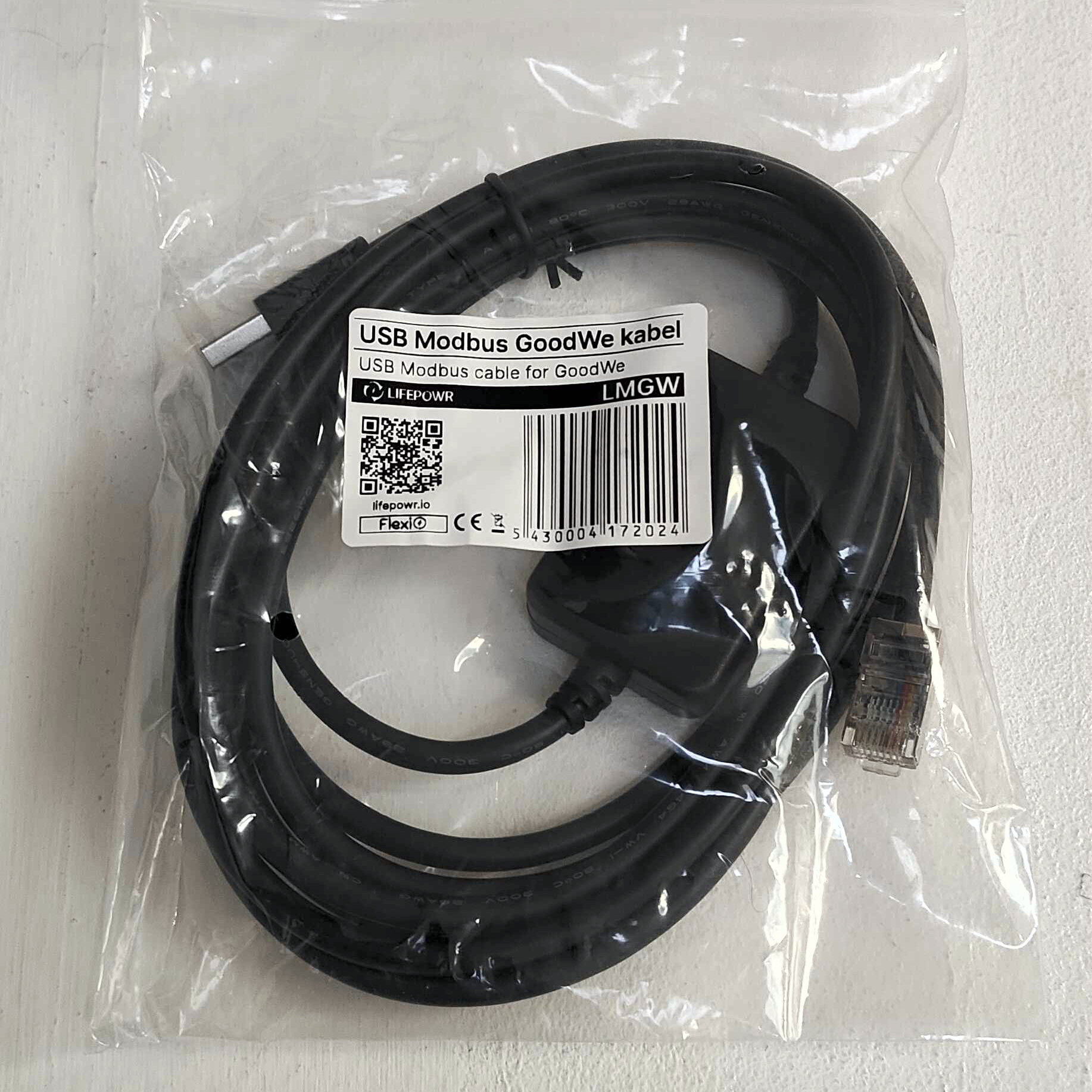

Product images
Related products
Black Dongle USB-RJ45 (female) LMGS
Installation instructions
Connect the RJ45 connector to the GoodWe inverter.
Connect the other end of the cable (USB) to the FlexiObox.
You can choose which 4 USB ports to use (2x USB 2.0 black and 2x USB 3.0 blue).
More technical details on inverters and charging station configurations can be found here.
Technical details
Data | |
|---|---|
Product number: | LMGW |
Weight: | 120 gram |
Cable length: | 2,5 meter |
Connector 1: | RJ45 |
Connector 2: | USB-A |
GTIN-13 ref: | 5430004172024 |
Documentation | |
|---|---|
Product datasheet: | |
EU safety leaflet: | |
CE declaration: | |
Certification EMC/ROHS/CEBEC: |
Q&A
If the hole in the bottom plate of the inverter does not allow enough space, it is possible to use the LMGS variant together with a manually assembled (Cat6) S/FTP cable with RJ45 connectors.
