Load balancing

In each mode, load balancing will be taken into account = The EV charger's power will be adjusted automatically if necessary to prevent an overload of the home's main fuse. This is also called dynamic load balancing.

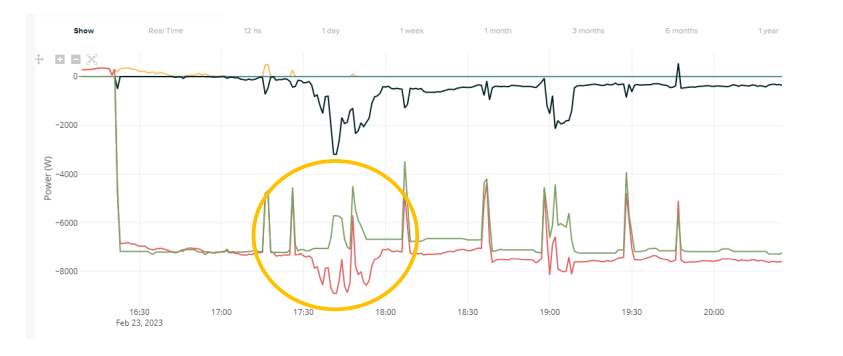

The above diagram clearly shows that the main fuse of 40A (~8,800W) is protected by the charger power limit.
At around 17:40, the cooking process (black line) is started, causing the power drawn from the grid to exceed 8,500 watts (red line). The EV charger (green line), which is charging at 7,300 watts, will automatically reduce its power so that the maximum power of the main fuse is not exceeded.

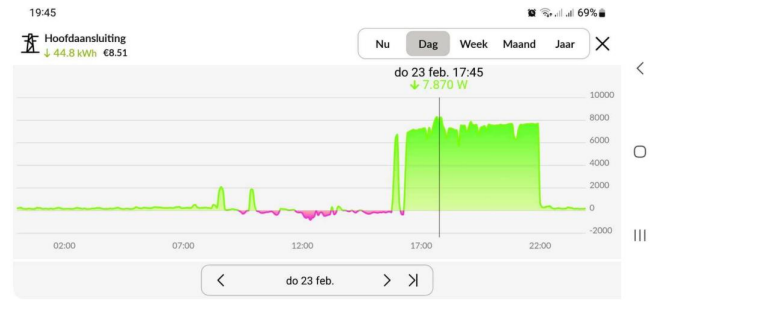

This can also be seen from the reading of the P1 port, which shows that FlexiO ensures that the main connection is dynamically protected.
