SolarEdge

This integration guide is compatible with the following SolarEdge StorEdge® products:

• StorEdge® Single Phase Inverter

• StorEdge® Three Phase Inverter

• SolarEdge Single Phase Inverter + StorEdge® Interface

• SolarEdge Single Phase Inverter + SolarEdge Home Battery 400V

Depending on their type, SolarEdge devices may be configured in either of the two ways:

• Using SetApp

• Using the LCD (Firmware version 3.xxxx and above only)

1. Modbus

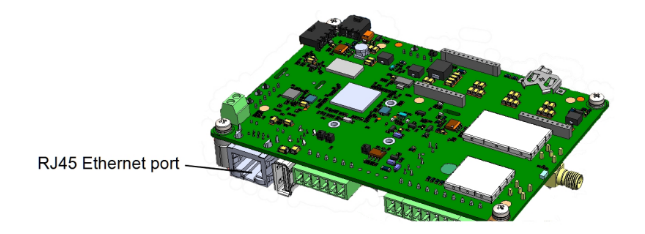

Ethernet - Connect the inverter using the local network (Modbus TCP). Folow SolarEdge instructions manual. Be aware the inverter ip adres is in the same network range as the FlexiObox.

2. Enable Modbus - SetApp Inverters

1. Install the SolarEdge SetApp Application if not already.

2. Login with your SolarEdge partner account

3. Connect your phone to the inverter by scanning the label QR code.

4. Enable Modbus TCP if using the local network for connection.

Select Communication -> Modbus TCP -> Enable
Select Communication -> Modbus TCP -> TCP Port -> 1502

3. Enable Modbus - Non SetApp Inverters (LCD)

Enable Modbus TCP if using the local network for connection.

Select Communication -> LAN Conf -> Modbus TCP -> Enable
Select Communication -> Modbus TCP -> TCP Port -> 1502

4. mySolarEdge user app settings

These settings might be maintained by the end-user.

Be aware the correct settings are selected in the mySolarEdge user app:

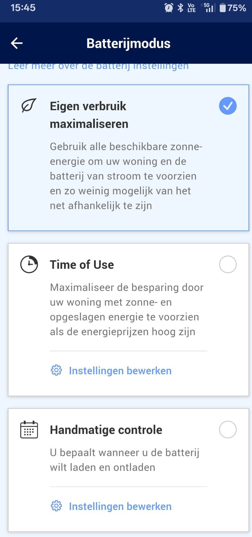

• Battery Mode: Maximize Self Consumption is selected (Application Note)

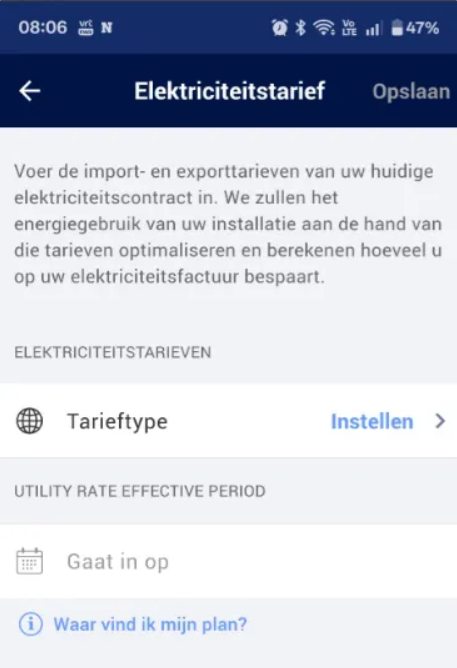

• Utility Rates: Negative Rate Optimization is Off (Application Note)

Incorrect SolarEdge App user settings are a direct cause for the incorrect behaviour of the FlexiO steering.

Be aware other thirth party systems (f.e. Home Assistant) works not together with FlexiO.

5. Brand documents

• StorEdge® Single Phase Inverter Installation Guide (external link)

• StorEdge® Three Phase Inverter Installation Guide (external link)

• StorEdge® Interface Installation Guide (external link)
