[HP1] P1 HomeWizard Wi-Fi dongle
Description
The HomeWizard Wi-Fi dongle provides P1 reading and sends the data wirelessly over the local network to the FlexiObox. A HomeWizard dongle can be used as an alternative where P1 cables are not an option.
Easy to configure. Takes power directly from the digital meter's P1 port.
P1 data is required for:
Obtaining accurate measurements to allow FlexiO to properly control the installation
Participating in grid balancing

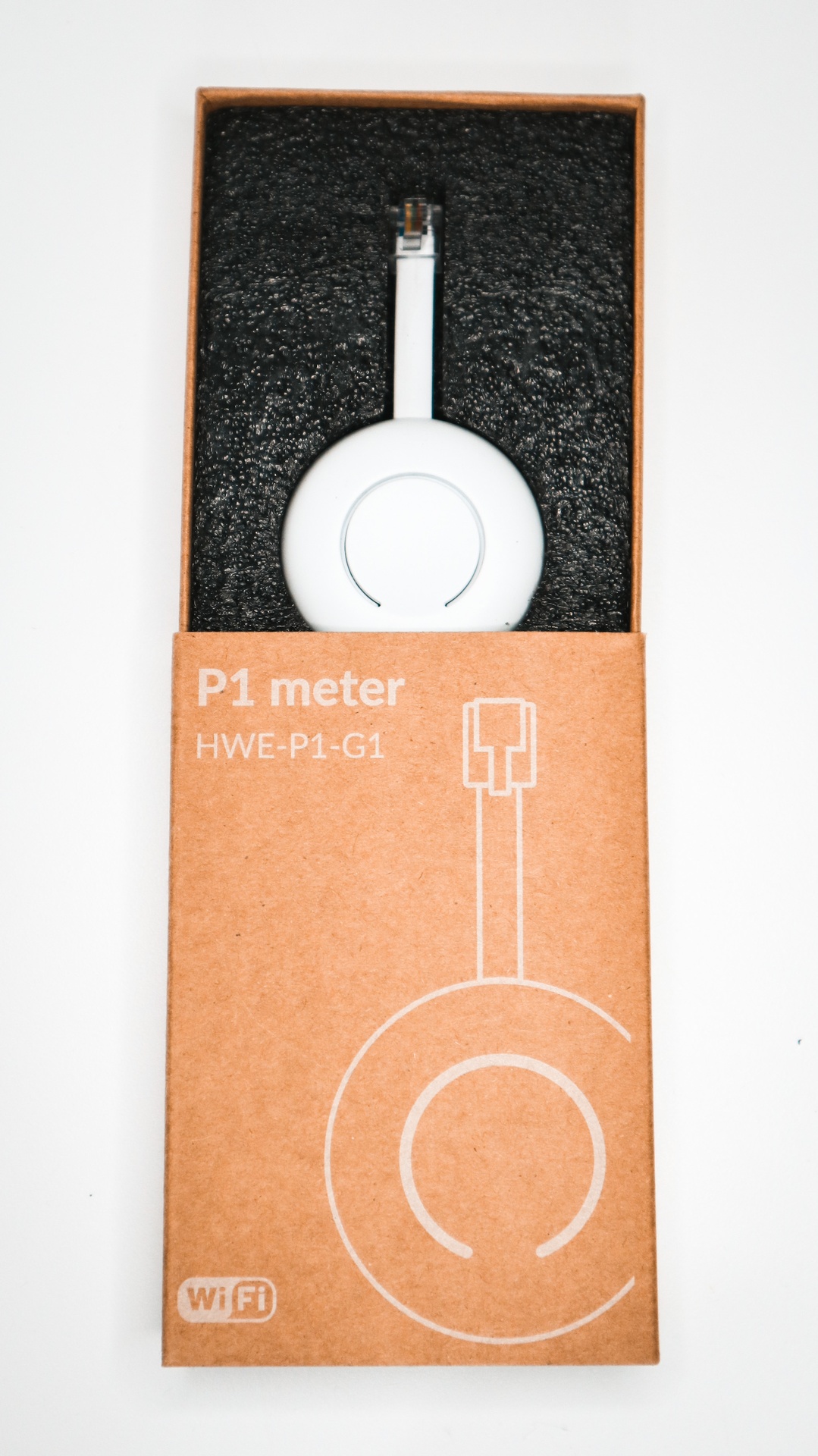

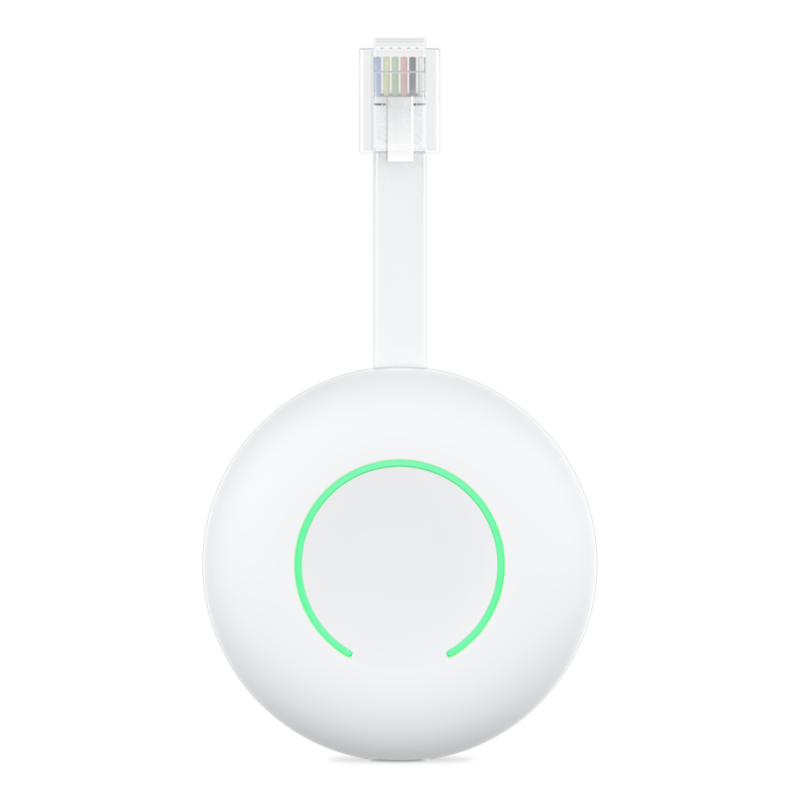

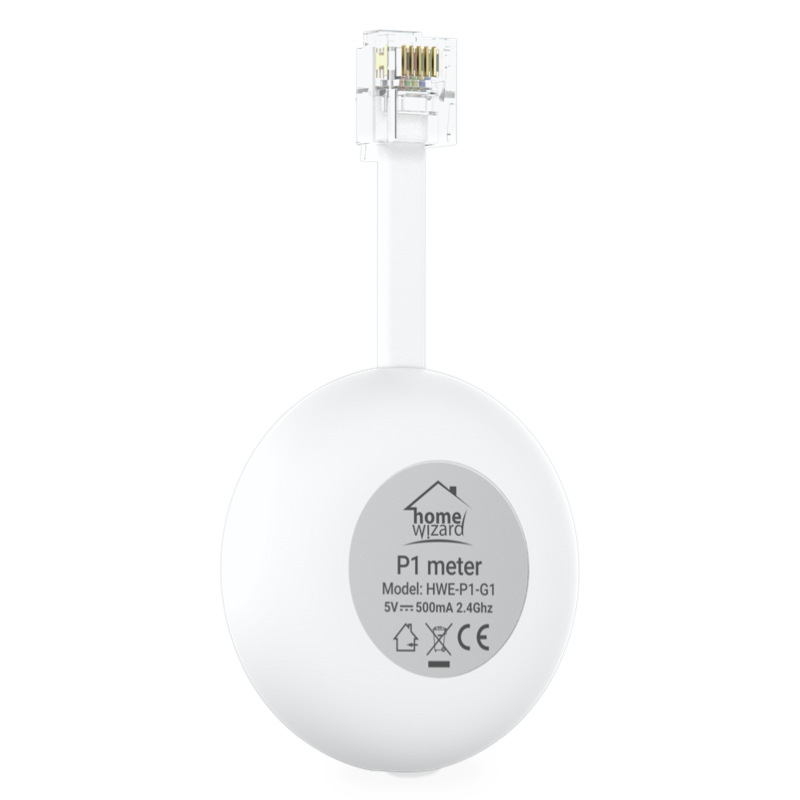

Product images
Related products
Installation instructions
Manufacturer guideline: https://helpdesk.homewizard.com/en/articles/5936058-how-to-install-the-wi-fi-p1-meter
The P1 port may be disabled by default. Read this section for more information on how to enable.
Remark: this action should be executed by the end-user.
Some digital meters may have 2 ports (P1 & S1): check carefully which one is the P1 port.
Make sure that "Has P1 port" is enabled when configuring the FlexiObox.
You can find this setting on the "Device Details" page.
Technical details
Data | |
|---|---|
Product number: | HP1 |
Weight: | 60 gram |
Cable length: | 5cm |
Fase: | 1 & 3 fase |
Wireless: | 802.11b/g/n (2.4 GHz) Wi-Fi |
Ingress Protection: | IP51 (indoor) |
Power consumption: | < 1 Watt |
Power: | No external power supply required for SMR5 smart meters. USB-C power supply required for older smart meters or when using splitter with both devices powered via RJ12. |
Measurement: | Electricity import/export, gas |
Data frequention: | Electricity: max every second |
Data encryption: | Yes |
Local API: | Yes |
Bridge/hub required: | No |
GTIN-13 ref: | 8720892288837 |
Documentation | |
|---|---|
Product datasheet: | |
EU safety leaflet: | |
CE declaration: | |
Certification EMC/ROHS/CEBEC: |
Tips - Q&A
Only to be used with digital meters and when the distance between FlexiObox and digital meter exceeds 5 meters, in other cases the wired connection is recommended (LP12 or LP15).
Some digital meters have 2 ports (P1 & S1): carefully check which one is P1
The P1 port may be disabled by default. Read this section for more information on how to enable.
Remark: this action should be executed by the end-user.
Related: where to order this product.
