[LMA3] (red) Modbus RTU Alpha ESS adapter
Product available as from mid June 2026
Description

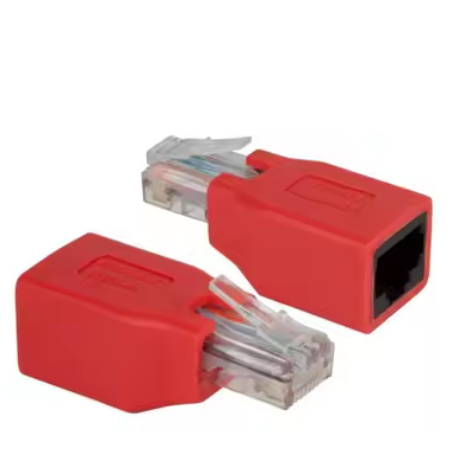

High quality RJ45 (male) to RJ45 (female) shielded connector.
Part of set LMGS+LMA3 for direct serial Modbus connection of the inverter to the FlexiObox.
LMA3 always to be used in combination with LMGS Modbus RTU generic cable.

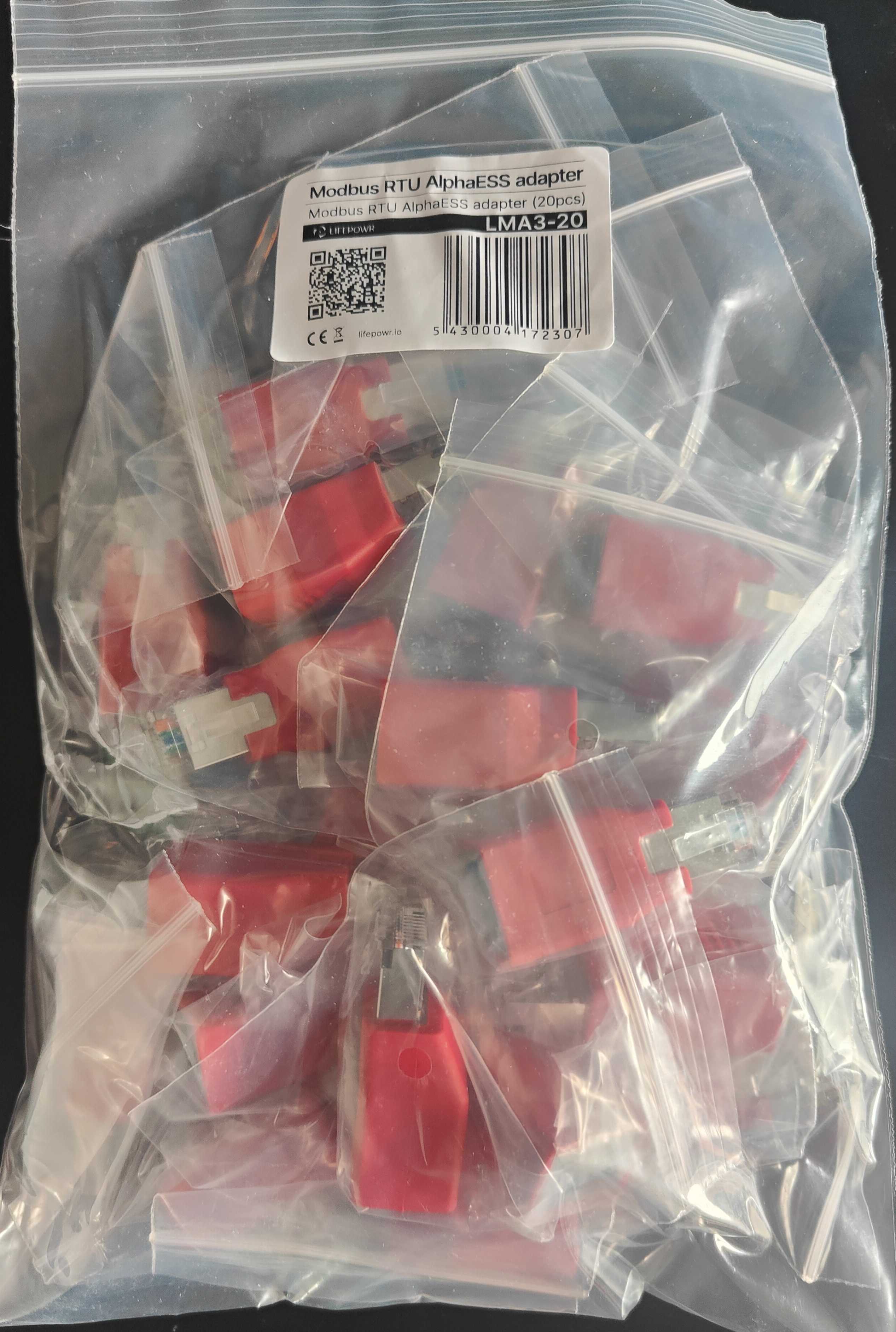

LMA3 adapter is sold per 20 pieces (pack).
Use this adapter for easily setting up Modbus RTU connection for Alpha ESS.
Product images
Related products
LMGS Modbus RTU generic cable (mandatory combination)
LMA1: additional screw adapter (generic Modbus RTU)
LMA2: additional SolaX/Solinteg/Fronius adapter
LSF2: S/FTP shielded network cable 2m
Installation instructions
Use the LMA3 adapter together with LMGS Modbus RTU generic cable.
Plug a LSF2 or a Cat6a shielded network cable into the female part of the LMA3 adapter
Plug the other side of LMA3 into the LMGS Modbus RTU generic cable
Connect the USB-A side into the FlexiObox
You will now have following connections:
FlexiObox ← USB -> LMGS ← RJ45 -> LMA3 ← RJ45 Cat6a network cable -> Alpha ESS Inverter
Technical details
Data | |
|---|---|
Product nummer: | LMA3 |
Color: | Red |
Weight: | 20 gram |
Cable length: | n/a |
Connector 1: | RJ45 (male) |
Connector 2: | RJ45 (female) |
GTIN-13 ref: | 5430004172307 |
Documentation | |
|---|---|
Product datasheet: | |
EU safety leaflet: | |
CE declaration: | |
Certification EMC/ROHS/CEBEC: |
Tips
This adapter can only be used in conjunction with LMGS Modbus RTU generic cable to achieve direct serial Modbus RTU connection between the inverter and FlexiObox.
LIFEPOWR recommends using Modbus RTU rather than Modbus TCP:
Modbus RTU uses a direct serial connection between FlexiObox and inverter
Modbus TCP uses the local network and might be slightly less stable or less fail-proof
