[LP15] P1 cable RJ12 to USB (5m)
Description
High quality RJ12 to USB cable to connect the FlexiObox to the P1 port of the digital meter.
P1 data is required for:
Obtaining accurate measurements to allow FlexiO to properly control the installation
Participating in grid balancing

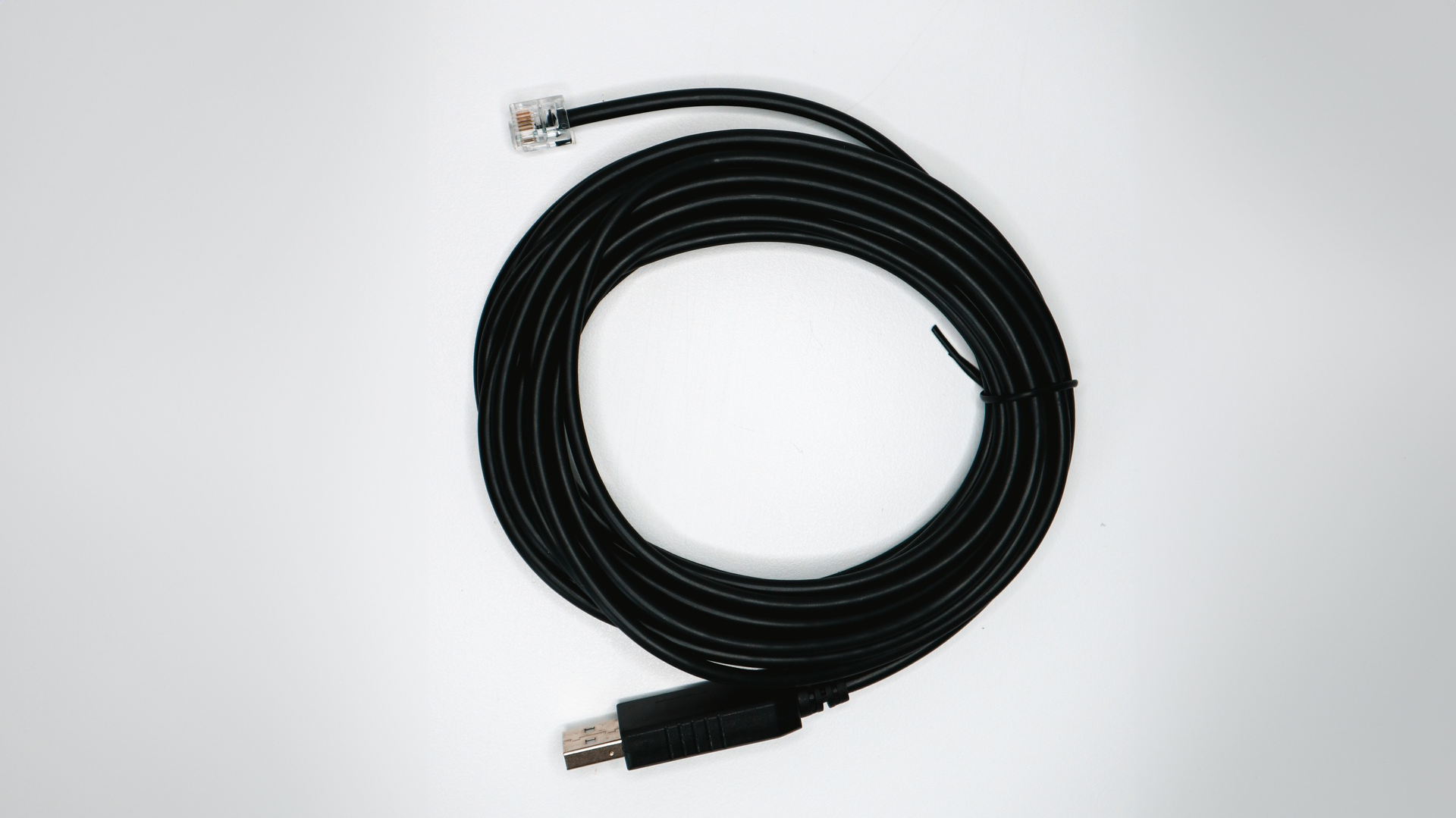

Product images

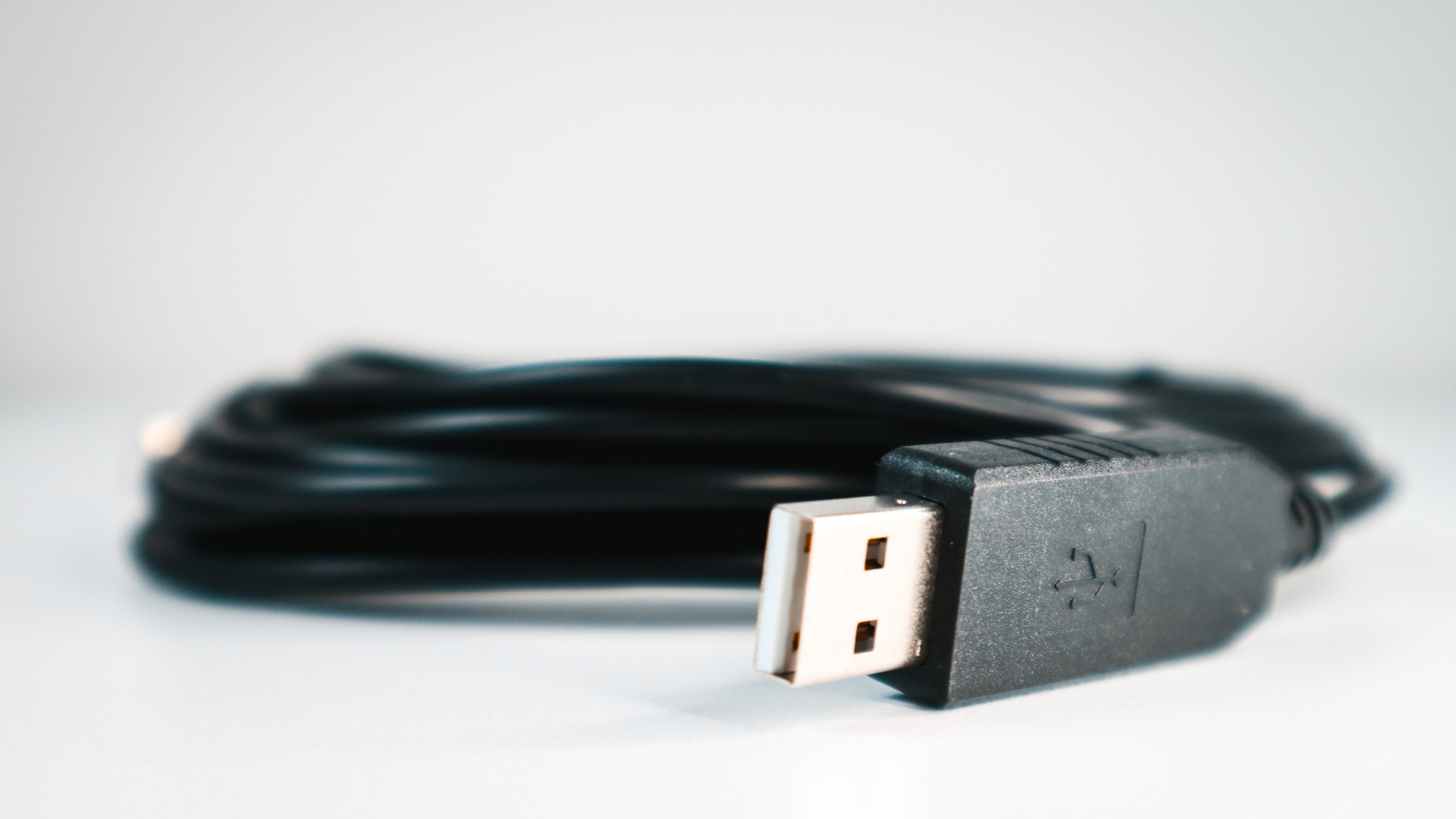

P1 cable (USB-A connector)

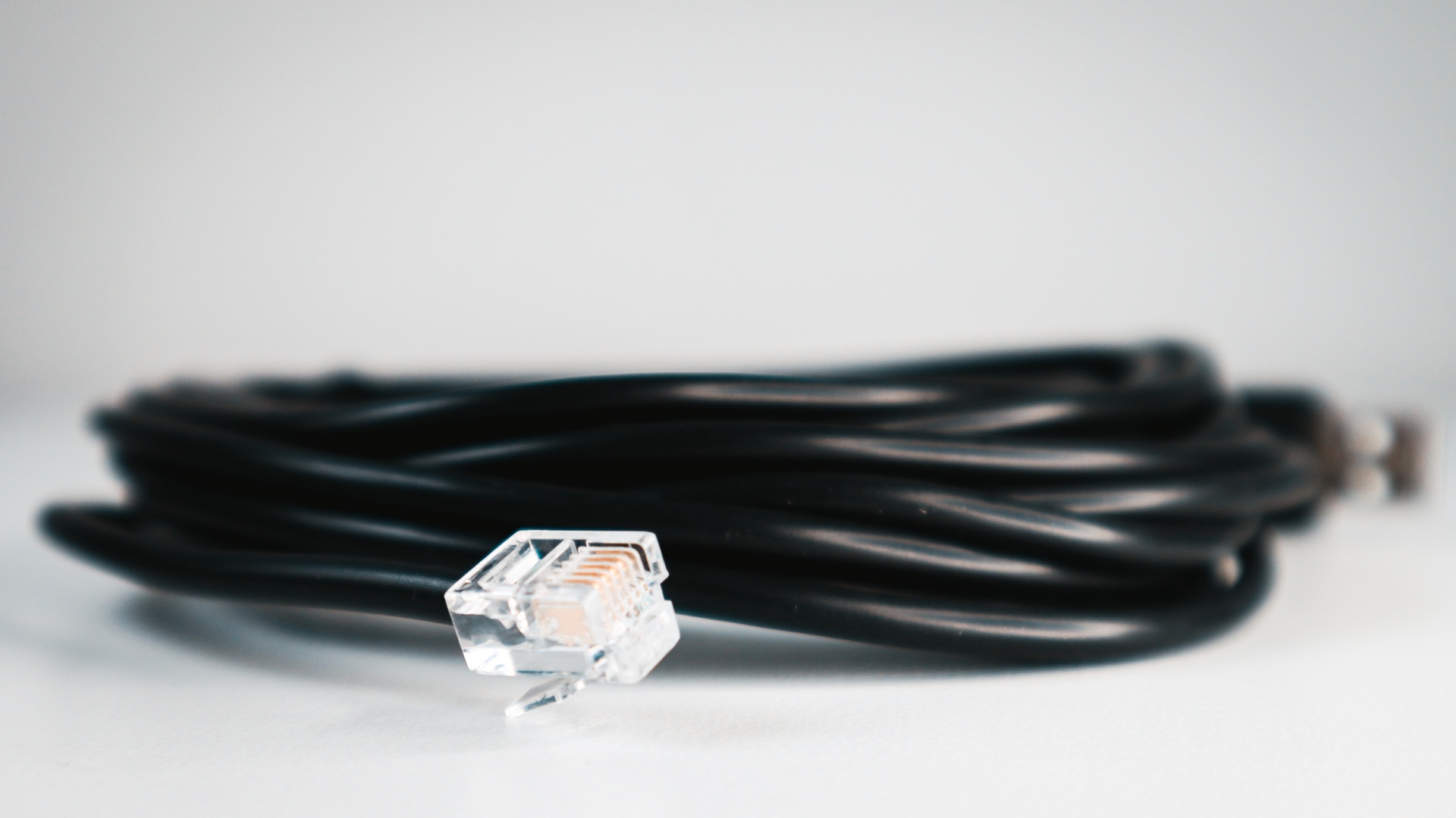

P1 cable (RJ12 connector)
Related products
Installation instructions
Connect the RJ12 connector to the P1 port of the digital meter.
The P1 port may be disabled by default. Read this section for more information on how to enable.
Remark: this action should be executed by the end-user.
Some digital meters may have 2 ports (P1 & S1): check carefully which one is the P1 port.
Connect the other end of the cable (USB) to the FlexiObox.
You can choose which 4 USB ports to use (2x USB 2.0 black and 2x USB 3.0 blue).
Make sure that "Has P1 port" is enabled when configuring the FlexiObox.
You can find this setting on the "Device Details" page.
Technical details
Data | |
|---|---|
Product number: | LP15 |
Weight: | 110 gram |
Cable length: | 5 meter |
Connector 1: | RJ12 (male) |
Connector 2: | USB-A |
GTIN-13 ref: | 5430004172093 |
Documentation | |
|---|---|
Product datasheet: | |
EU safety leaflet: | |
CE declaration: | |
Certification EMC/ROHS/CEBEC: |
Tips - Q&A
For use with digital meters only
Some digital meters have 2 ports (P1 & S1): carefully check which one is P1
The P1 port may be disabled by default. Read this section for more information on how to enable.
Remark: this action should be executed by the end-user.If the distance FlexiObox - digital meter is more than 5 meters, a P1 HomeWizard Wi-Fi dongle can be used as an alternative.
