Description
The kWh meter has built-in Wi-Fi and can be placed right next to your group in the meter box.
Used in an installation with a separate aftermarket inverter to accurately determine the yield of aftermarket PV.
For retrofit panels, this meter must be installed for FlexiO to function properly.

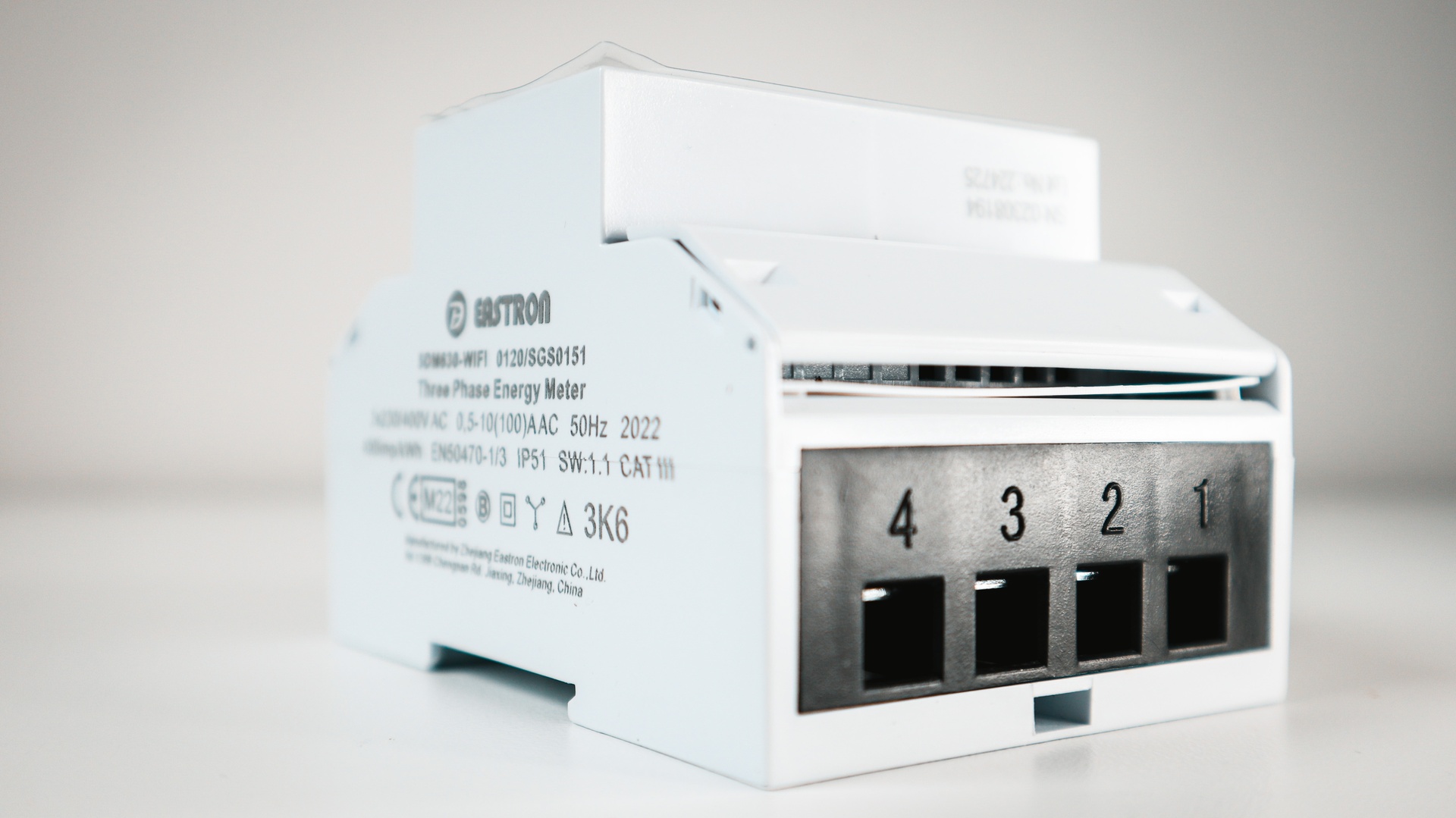

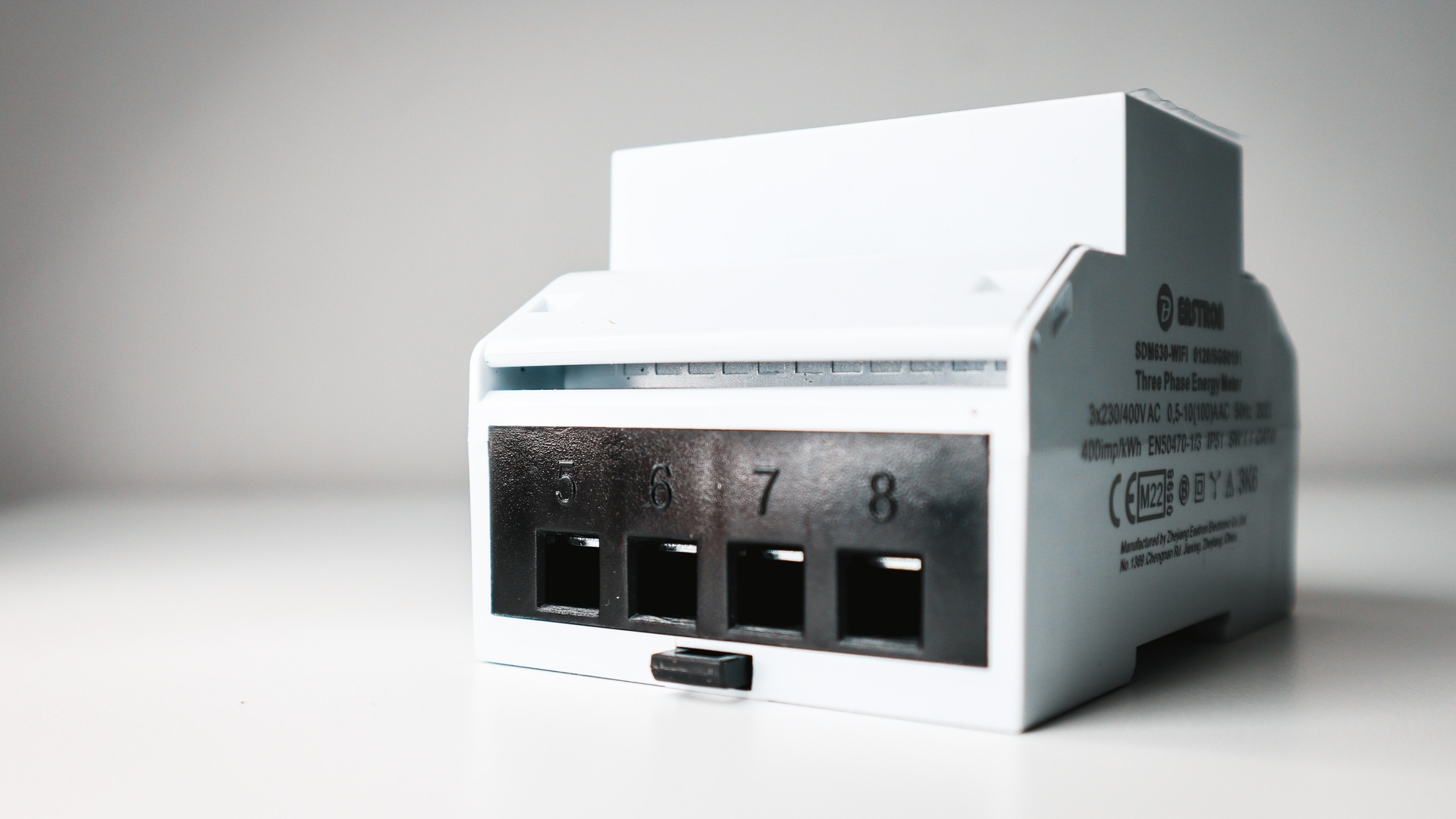

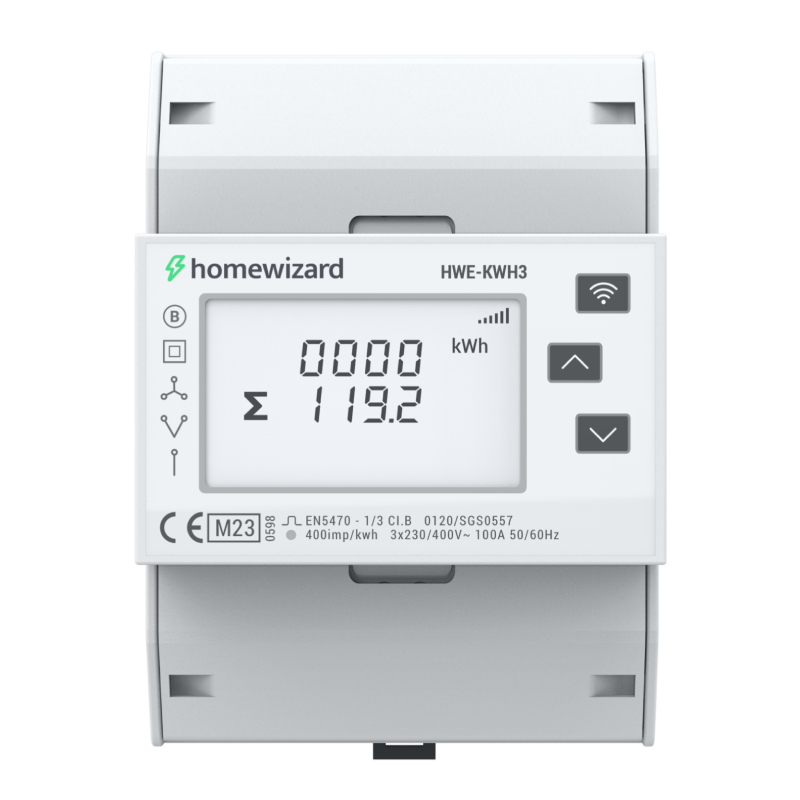

Product images
Related products
-
HE1 HomeWizard Eastron 1-phase kWh meter (Wi-Fi)
Installation instructions
Manufacturer guideline: https://helpdesk.homewizard.com/en/articles/5954215-how-to-install-the-3-phase-wi-fi-kwh-meter
FlexiO automatically identifies the HomeWizard Eastron meter when connected to the local network.
Technical details
Data
|
|
|---|---|
|
Product number: |
HE3 |
|
Color: |
Light gray |
|
Weight: |
490 gram |
|
Wireless: |
802.11b/g/n (2.4 GHz) Wi-Fi
|
|
Security: |
Automatic security updates
|
|
External connection: |
Open API (JSON) |
|
Voltage: |
176 ~ 276V AC |
|
Max. current (lmax): |
100 Amps |
|
Power consumption: |
<2W |
|
Accuracy class: |
B (MID) |
|
Montage: |
DRA (35mm DIN-rail) |
|
Dimensions: |
72 (b) x 100 (d ) x 66 (h) mm |
|
Display: |
LED LCD display |
|
GTIN-13 ref: |
8720892068729 |
Documentation
|
|
|---|---|
|
Product datasheet: |
|
|
EU safety leaflet: |
|
|
CE declaration: |
|
|
Certification EMC/ROHS/CEBEC: |
|
Tips
-
Make sure that both the HomeWizard Eastron meter and the FlexiObox are on the same (local) network. More information about FlexiO and network setup can be found here.
-
Read this section for understanding the difference between PV panels and retrofit panels
